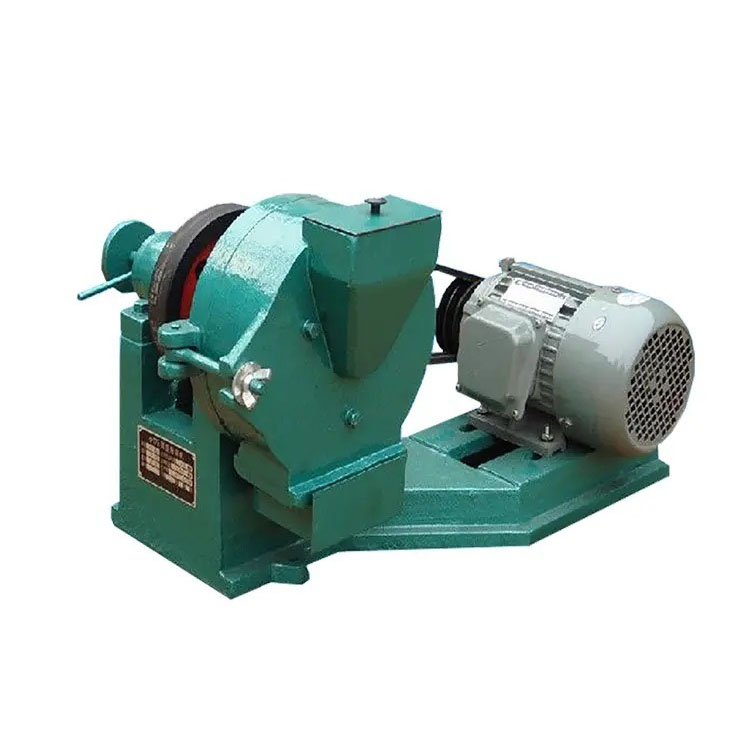

1、 175 details of disc crusher:
175 disc crusher has the advantages of convenient operation, good dust-proof performance and beautiful appearance. It is mainly used for medium grade ore and cement clinker. It is one of the main equipment in laboratories or laboratories in metallurgy, geology, building materials, chemical industry and other industries.
2、 Working principle of 175 disc crusher
The motor drives the belt pulley to rotate, and the belt pulley drives the movable grinding disc on the main shaft to rotate, so that the movable grinding disc and the fixed grinding disc produce relative rotation movement, so that the materials between the two discs are crushed and fall into the blanking box from the gap between the two discs. The discharge particle size can be controlled by adjusting the gap between the two discs by adjusting the hａnd wheel.
3、 Main technical parameters of 175 disc crusher
1. Grinding disc diameter: φ 175mm；
2. Maximum particle size of feed: ≤ 4mm;
3. Discharge particle size: ≤ 0.15mm;
4. Productivity: 25kg / h;
5. Spindle speed: 900r / min;
6. Working power supply: ac380v50hz1 1Kw；
7. Overall dimension: 730x500x510mm;
8. Weight: 105kg.
4、 175 composition structure of disc crusher
175 disc crusher is mainly composed of support, bearing seat, grinding seat, moving grinding disc, fixed grinding disc, movable grinding cover, belt pulley and motor.
5、 Use and maintenance of 175 disc crusher
1. Commissioning: before commissioning, open the front cover to see whether the rotating belt rotates flexibly. If it is not flexible, loosen the adjusting hａnd wheel, and then rotate the belt until it is flexible. Check whether all fasteners are fastened and lock the butterfly nut before commissioning. Materials shall not be put during commissioning.
2. Use: open the plug on the movable grinding cover, loosen the butterfly nut and adjust the hａnd wheel. From the plug hole, the gap between the two grinding discs should not be too large, but too tight will also cause difficulty in starting. Lock the butterfly nut, plug the plug, add materials from the feeding port of the movable grinding cover, and turn on the power supply. If it is found that the discharge particle size cannot meet the requirements, the hａnd wheel shall be adjusted until the requirements are met. When working, both butterfly nuts should be locked, otherwise it will affect the use. Cut off the power supply after work and take out the materials from the blanking box. Replace the sample. In order to make the test data accurate, loosen the butterfly nut II, open the movable grinding cover, and brush the residue in the working chamber with a brush.
3. Maintenance: open the upper cover of the whole machine, screw out two guide screws, inject lubricating oil inward, and then screw in the two guide screws (Note: do not pre tighten the two bearing sleeves, otherwise the lubrication of the bearing sleeve is not flexible, and the clearance between the two grinding discs cannot be adjusted by adjusting the hａnd wheel). Close the cover. When the movable grinding disc needs to be replaced, loosen the three screws fixing the movable grinding disc with a wrench.
一、175圆盘粉碎机的详细资料：
175圆盘粉碎机操作方便，防尘性能好，外表美观。主要用于中等度矿石及水泥熟料，是冶金、地质、建材、化工等行业实验室或化验室的主要设备之一。
二、175圆盘粉碎机工作原理
由电机带动皮带轮旋转，皮带轮带动主轴上的动磨盘旋转，使动磨盘和定磨盘产生相对旋转运动，使在两盘中间的物料粉碎，并从两盘缝隙中落在落料箱中。出料粒度可通过调节手轮来调节两盘的间隙达到控制粒度目的。
三、175圆盘粉碎机主要技术参数
1、磨盘直径：φ175mm；
2、给料粒度：≤4mm；
3、出料粒度：≤0.15mm；
4、生产率：25kg/h；
5、主轴转速：900r/min；
6、工作电源：AC380V50Hz1.1Kw；
7、外形尺寸：730x500x510mm；
8、重量：105kg。
四、175圆盘粉碎机组成结构
175圆盘粉碎机主要由支架、轴承座、研磨座、动磨盘、定磨盘、活动研磨盖、皮带轮及电机组成。
五、175圆盘粉碎机使用及保养
1、试车：试车前打开前盖，看转动皮带是否转动灵活，如不灵活应放松调节手轮，然后再转动皮带直至灵活。检查各紧固件是否紧固，锁紧蝶形螺母，方可试车，试车时不可放物料。
2、使用：打开活动研磨盖上的塞子，松开蝶形螺母，调节手轮，从塞孔中看两磨盘间隙不要太大，但太紧也会造成启动困难。锁紧蝶形螺母，塞紧塞子，把物料从活动研磨盖的入料口加入，接通电源工作。若发现出料粒度达不到要求，应调节手轮，直到满足要求为止。工作时两个蝶形螺母都要锁紧，否则影响使用。工作结束切断电源，从落料箱中取出物料。调换试样，为了使化验数据准确，可松开蝶形螺母Ⅱ，打开活动研磨盖，用刷子刷净工作室内残留物。
3、保养：打开整机的上罩壳，拧出两导向螺钉，向内注入润滑油即可，然后将两导向螺钉旋入（注意，不可预紧两轴承套、，否则轴承套润滑不灵活，调节手轮无法调节两磨盘间隙）。盖好上罩壳。须更换动磨盘时，用扳手松开三只固定动磨盘的螺钉即可。
